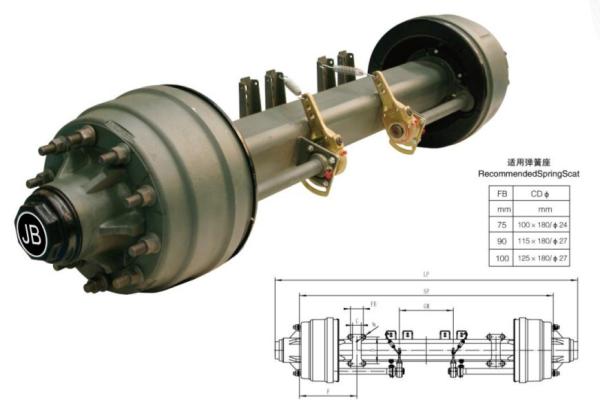

American Outboard Axle

Axle Type

105Km/h

Rated

Load

(Kg)

Specification

Of Arrester

Brake

(mm)

Track

SP

(mm)

Centre Distance of

Brake Chamber

GM

(mm)

Axle Tube

(mm)

Spring Seat

Installation

FM

(mm)

Wheel Fixing

Total

Length

LP

(mm)

Weight

Bearing

Stud

P.C.D

(mm)

H

(mm)

13TW1-00

13,000

ф420*180

1840

388

□150*12

≤455

10-M22*1.5

ISO

335

280

2196

363

518445/10

518445/10

13TW1B-00

13,000

ф420*180

1840

388

□150*12

≤455

10-M22*1.5

ISO

285.75

220

2196

363

518445/10

518445/10

13TWY1-00

13,000

ф420*180

1840

388

□127*16

≤455

10-M22*1.5

ISO

335

280

2196

365

518445/10

518445/10

13TWY1B-00

13,000

ф420*180

1840

388

□127*16

≤455

10-M22*1.5

ISO

285.75

220

2190

365

518445/10

518445/10

16TW1-00

16,000

ф420*220

1850

354

□150*16

≤455

10-M22*1.5

ISO

335

280

2218

423

518445/10

220149/10
