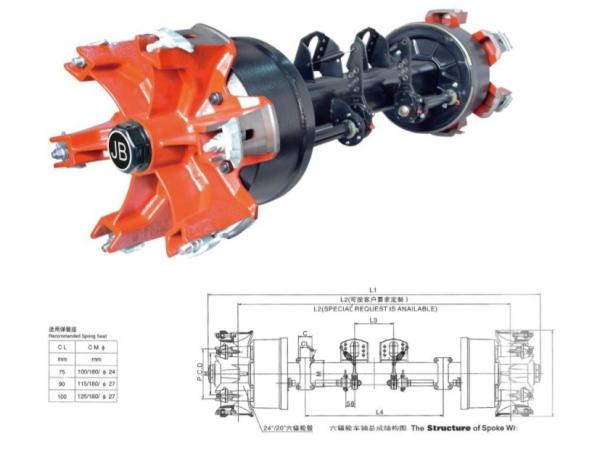

Name: Six Spoke Axle
Price: 1 USD

Place of Origin : foshan

Price : negotiate

Delivery Time : 10days

Payment Terms : t/t

MOQ : 1pcs

Contact Now

Axle Type	105Km/h Rated Load (Kg)	Specification Of Arrester Brake (mm)	Track L2 (mm)	Centre Distance of Brake Chamber L3 (mm)	Axle Tube (mm)	Spring Seat Installation L4 (mm)	Wheel Fixing		Total Length L1 (mm)	Weight	Bearing
Axle Type	105Km/h Rated Load (Kg)	Specification Of Arrester Brake (mm)	Track L2 (mm)	Centre Distance of Brake Chamber L3 (mm)	Axle Tube (mm)	Spring Seat Installation L4 (mm)	Stud	Recommended Wheel	Total Length L1 (mm)	Weight	Bearing
12TS24-00	12,000	ф420*200	1840	356	□150*12	900	6-M20*2 ISO	8.5-24	2134	410	33213 33118
14TS24-00	14,000	ф420*200	1840	357	□150*14	900	6-M20*2 ISO	8.5-24	2166	445	33215 32219
16TS24-00	16,000	ф420*200	1850	372	□150*16	900	6-M20*2 ISO	8.5-24	2258	475	32314 32222
16TS20-00	16,000	ф420*200	1850	372	□150*16	900	6-M20*2 ISO	8.5-20	2258	447	32314 32222
