Germany type rear axle for heavy duty trailer

Product Categories

Foshan trailer axle co., ltd.

Contact Now

Place of Origin : foshan

MOQ : 1set

Price : negotiate

Delivery Time : 10days

Payment Terms : T/T

Contact Now

Axle Type	105Km/h Rated Load (Kg)	Specification Of Arrester Brake (mm)	Track L2 (mm)	Centre Distance of Brake Chamber L3 (mm)	Axle Tube (mm)	Spring Seat Installation L4 (mm)	Wheel Fixing			Total Length L1 (mm)	Weight	Bearing
Axle Type	105Km/h Rated Load (Kg)	Specification Of Arrester Brake (mm)	Track L2 (mm)	Centre Distance of Brake Chamber L3 (mm)	Axle Tube (mm)	Spring Seat Installation L4 (mm)	Stud	P.C.D (mm)	H (mm)	Total Length L1 (mm)	Weight	Bearing
JB09G180-00	9,000	ф420*180	1840	422	□120*12	≤455	10-M22*1.5 ISO	355	281	2156	358	33213 33118
JB12G180-00	12,000	ф420*180	1840	422	□120*16	≤455	10-M22*1.5 ISO	355	281	2156	370	33213 33118
JB12G180A-00	12,000	ф420*180	2040	622	□120*16	≤455	8-M20*1.5 JIS	285.75	220	2356	382	33213 33118
JB12C180-00	12,000	ф420*180	1840	422	ф127*16	≤455	10-M22*1.5 ISO	335	281	2156	363	33213 33118
JB12C180A-00	12,000	ф420*180	2040	622	ф127*16	≤455	8-M20*1.5 JIS	285.75	220	2356	375	33213 33118

1) Axle and JT/T475-2002 standard, the fatigue test of 800,000 times

2) Bearing position using medium frequency heat treatment process, effectively reduce bearing heating, improve the service life of bearing and axle

3) the brake lining is environment friendly, non-asbestos and long life-expectancy.

Quality assurance can reach 100,000 km

4) the bearing is high rotate speed, abrasion resistant and heat resistant

5) Brake hub with advanced casting process, satisfy the standard of GB/T9439

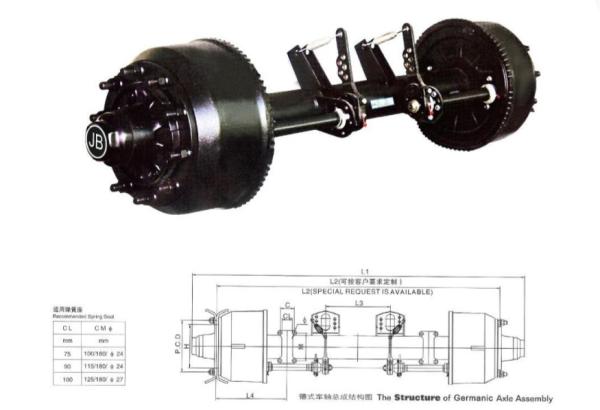

Germany type rear axle for heavy duty trailer Images
